Building Anchor
Your Professional Building Anchor Manufacturers
Handan DongChao Hardware Products Co., Ltd. is a leading fastener manufacturer and factory established in 2008, located in the fastener capital of China. With nearly two decades of experience in design, production, and global distribution, we specialize in producing self drilling screws, Tek screws, and self tapping screws. In addition, we supply a wide range of high-quality fasteners including bolts, nuts, washers, shear studs, threaded rods, anchor bolts, and rivets, serving diverse industries worldwide.
Product Categories
Latest Products
Why Choose Us
Professional Team
The members of the team are highly skilled and proficient in their respective roles and possess the necessary education, training, and experience to excel in their jobs.
Quality & Certification
Handan DongChao adheres to strict international quality standards, holding ISO and CCC certificates. Every product is engineered for durability, strength, and reliability to meet the needs of demanding applications.
Customized Services
We understand that each customer has unique manufacturing needs. That’s why we offer customization options to cater to your specific requirements.
Global Market
Our fasteners are widely exported to USA, UK, UAE, Saudi Arabia, Vietnam, Korea, Africa, South America, and many other regions, earning trust and recognition from customers worldwide.
Our Company's Stainless Steel Concrete Wedge Anchors Includes The Following Products

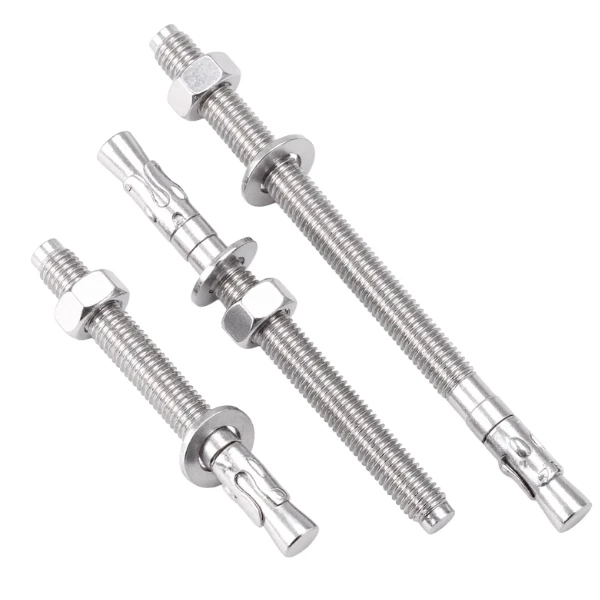

Stainless Steel Concrete Wedge Anchors
Benefits of Using Stainless Steel Wedge Anchor
Corrosion Resistance
Stainless steel wedge anchors are made of stainless steel, which makes them highly resistant to corrosion and rust. This is especially important in construction projects that involve outside exposure to moisture, harsh weather or chemicals. The stainless steel construction ensures that the anchor can withstand the test of time and maintain its structural integrity for years to come.
Secure Hold
The wedge shape of the anchor enables it to create a secure hold within the concrete or masonry workpiece. The anchor expands as the nut is tightened, making it a strong and reliable anchor that can withstand significant weight. The strong grip of the anchor is further enhanced by a raised thread design, which provides a better grip on the concrete.
Resistant to Temperature Changes
Another benefit of using stainless steel wedge anchors is their resistance to temperature changes. This means they will not expand or contract in extreme temperatures, making them ideal for use in hot and cold climates. This resistance to temperature changes also makes stainless steel wedge anchors ideal for use in outdoor applications.
Versatility
Stainless steel wedge anchors come in various sizes and designs, making them incredibly versatile and suitable for construction projects. They can be used for fixings like hanging doors, windows, cabinets and shelves, and they can also be utilized for installing railings, fences, and other outdoor fixtures. The versatility of wedge anchors adds value to any construction project, making them a must-have without compromising on safety or quality.
Easy to Install
The installation of stainless steel wedge anchors is quick and straightforward. The anchor is inserted into a pre-drilled hole and screwed into place with a wrench. The installation method is easy to follow and requires few tools, making it an ideal choice for DIY enthusiasts and professional builders.
Durability
Stainless steel wedge anchors are corrosion-resistant, making them a durable and long-lasting option for any construction project. The anchor’s wedged shape provides an added layer of durability by expanding and contracting as bulk is added or removed from the supported structure. The expansion results in a longer-lasting grip and a steadfast hold that ensures the anchor won’t move or become loose.
Construction Projects They are commonly used to secure structural elements like beams and columns to concrete slabs, ensuring the integrity of the building.
Mechanical Installations In industrial settings, wedge anchors are often used to secure machinery and heavy equipment to the floor, providing stability and reducing vibrations.
Outdoor Structures Stainless steel wedge anchors are perfect for outdoor applications, such as securing fences, flagpoles, and garden structures, where exposure to the elements can lead to rusting in lesser materials.
Marine Applications Given their corrosion resistance, stainless steel wedge anchors are also well-suited for marine environments, where saltwater can quickly degrade other materials.
Installation Process of Stainless Steel Concrete Wedge Anchors
To ensure a successful installation, follow these steps:
Drill a hole in the concrete with the appropriate diameter and depth for the chosen wedge anchor.
Clean the hole. Remove any dust or debris that may stop the anchor from expanding.
Insert the wedge anchor into the hole. Make sure the expansion clip is all the way in the hole.
Tighten the nut with the recommended torque. This will make the expansion clip get bigger and hold the anchor in position.
Product Description of Stainless Steel Concrete Wedge Anchors
|
Size |
Thread Size |
Anchor |
Diameter |
Min Embedment |
Max Fixture Thickness |
Pull Out Load In |
|
M8*80 |
M8-P1.25 |
80 |
8 |
55 |
40 |
950 |
|
M8*85 |
M8-P1.25 |
85 |
8 |
55 |
45 |
950 |
|
M8*90 |
M8-P1.25 |
90 |
8 |
55 |
50 |
950 |
|
M10*100 |
M10-P1.5 |
100 |
10 |
70 |
|
1320 |
|
M10*105 |
M10-P1.5 |
105 |
10 |
70 |
40 |
1320 |
|
M10*110 |
M10-P1.5 |
110 |
10 |
70 |
50 |
1320 |
|
M12*90 |
M12-P1.75 |
90 |
12 |
80 |
20 |
1980 |
|
M12*100 |
M12-P1.75 |
100 |
12 |
80 |
30 |
1980 |
|
M12*110 |
M12-P1.75 |
110 |
12 |
80 |
40 |
1980 |
|
M12*120 |
M12-P1.75 |
120 |
12 |
80 |
50 |
1980 |
|
M16*110 |
M16-P2.0 |
110 |
16 |
100 |
20 |
2750 |
|
M16*140 |
M16-P2.0 |
140 |
16 |
110 |
50 |
2750 |
|
M16*150 |
M16-P2.0 |
150 |
16 |
110 |
60 |
2750 |
|
M20*160 |
M20-P2.5 |
160 |
20 |
150 |
40 |
4660 |
|
M20*200 |
M20-P2.5 |
200 |
20 |
190 |
80 |
4660 |
Nylon Wall Plug
Benefits Of Nylon Wall Plug
Sustained high holding force
Nylon, with its high mechanical toughness and rigidity, provides expansion strength and friction toughness to give fixings a high holding strength in construction materials, continually.
Nylon has a low screw in torque and a high stripping torque
When screwing in the screw, the nylon plug moulds itself to the screw thread, ensuring a solid hold and providing clear feedback to the user, that the screw is tightening properly.
Thermal stability
Nylon remains viscoplastic at low temperatures and dimensionally stable at higher temperatures, from – 40° to + 80°.
Dense & rigid material
Nylon maintains all the expansion force that originally occurred with the installation of the screw, without lessening the expansion pressure.
Excellent chemical resistance
Nylon is resistant to ultraviolet (UV) ageing, rust and corrosion.
Good damping capacity
Nylon reduces vibrations and provides sound insulation and thereby reduces the amount of structure born noise.
• Construction: Window and door frame fixing
• Household: Shelves, cabinets, TV brackets
• Electrical: Lighting fixtures, conduits
• Plumbing: Pipe clamps, HVAC systems
• Industrial: Heavy equipment mounting, machinery anchoring
Types of Wall Plugs
Plastic Wall Plugs
Plastic wall plugs are the most common and are typically used for lightweight applications. They are made from soft plastics, such as polyethylene, and expand when a screw is threaded into them, gripping the sides of the hole drilled in the wall. Ideal for hanging picture frames, small shelves, or light fixtures, they are a cost-effective option for projects involving plaster or masonry. However, they are not recommended for heavier loads or use in walls that are subject to vibrations.
Nylon Wall Plugs
Nylon wall plugs offer more durability and strength than their plastic counterparts and are less likely to be affected by temperature changes or chemicals, making them a safer choice for both indoor and outdoor applications. These are more suited to medium-load requirements and provide excellent grip in substrates like concrete, brick, and stone. The versatility and reliability of nylon wall plugs make them a preferable option for securing medium-sized shelves, cabinets, or electrical installations.
Metal Wall Plugs
Metal wall plugs are the most robust type, designed for heavy-duty applications. They are usually made from steel or zinc and are used when the highest level of support is needed, such as in securing heavy radiators, kitchen cabinets, or television mounts. These plugs can handle significantly more weight and will not crack or split under pressure, making them ideal for use in concrete or solid brick. Their main disadvantage is that they require precise drilling and can be more challenging to install.
Product Specification of Nylon Wall Plug
|
Plug Size (Mm) |
Screw Size (Mm) |
Recommended Hole Diameter (Mm) |
Average Pull-Out Load (Concrete) |
|
6x40 |
4.5x50 |
6 |
80 – 100 kg |
|
6x60 |
4.5x70 |
6 |
100 – 120 kg |
|
8x60 |
5.5x70 |
8 |
150 – 180 kg |
|
8x100 |
5.5x110 |
8 |
200 – 250 kg |
|
10x80 |
7x90 |
10 |
250 – 300 kg |
|
10x120 |
7x130 |
10 |
300 – 350 kg |
|
12x100 |
8x110 |
12 |
350 – 400 kg |
|
12x150 |
8x160 |
12 |
400 – 450 kg |
Packaging and Shipping
FAQ
As one of the leading Building Anchor manufacturers and suppliers in China, we warmly welcome you to wholesale bulk Building Anchor in stock here and get pricelist from our factory. All customized products are with high quality and competitive price.
Stainless Steel Concrete Wedge Anchors, Nylon Wall Plug, rawlplug rawlbolts
